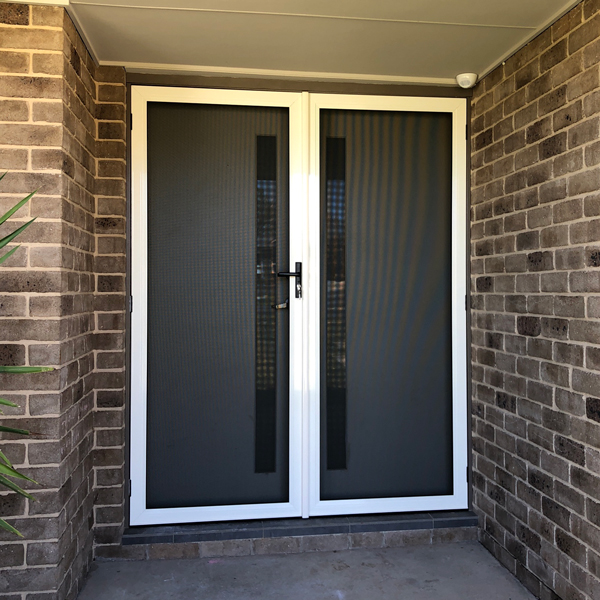

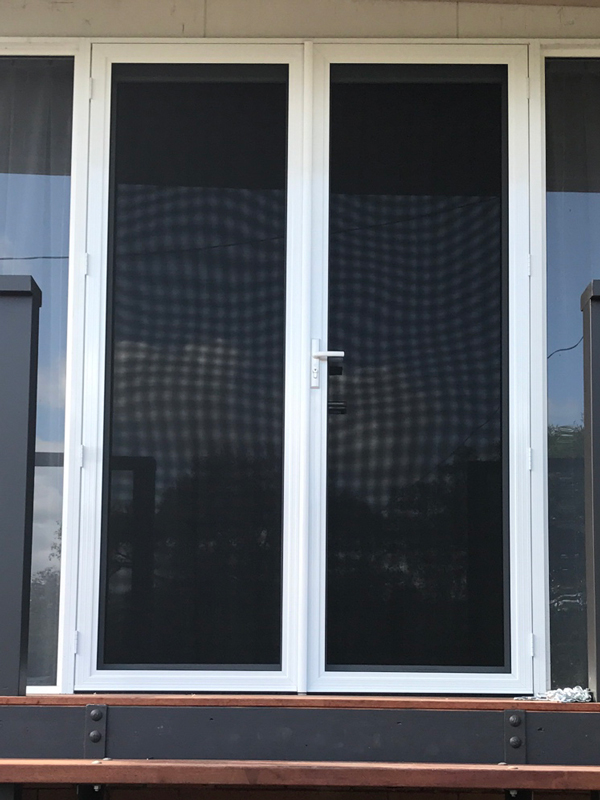

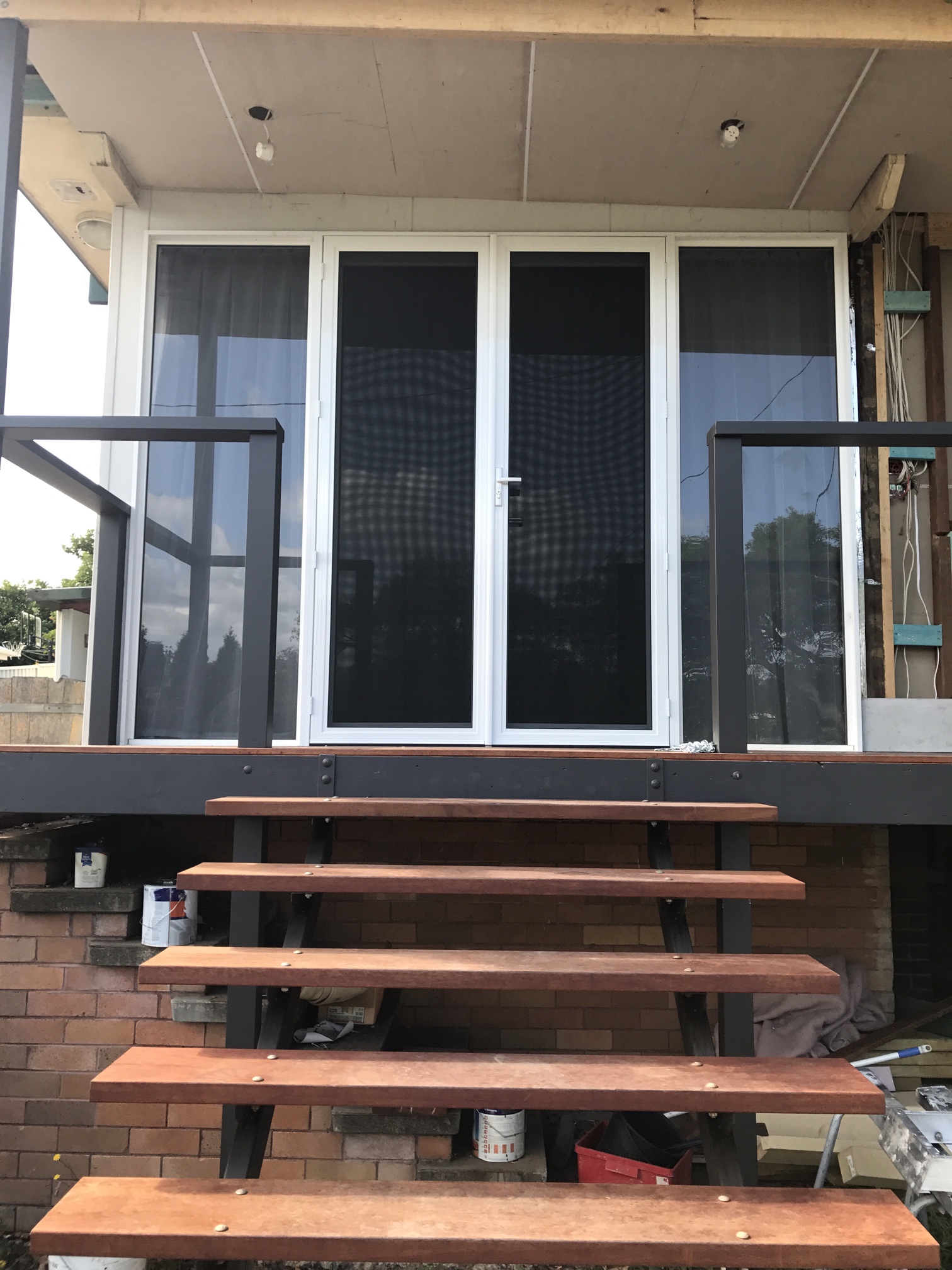

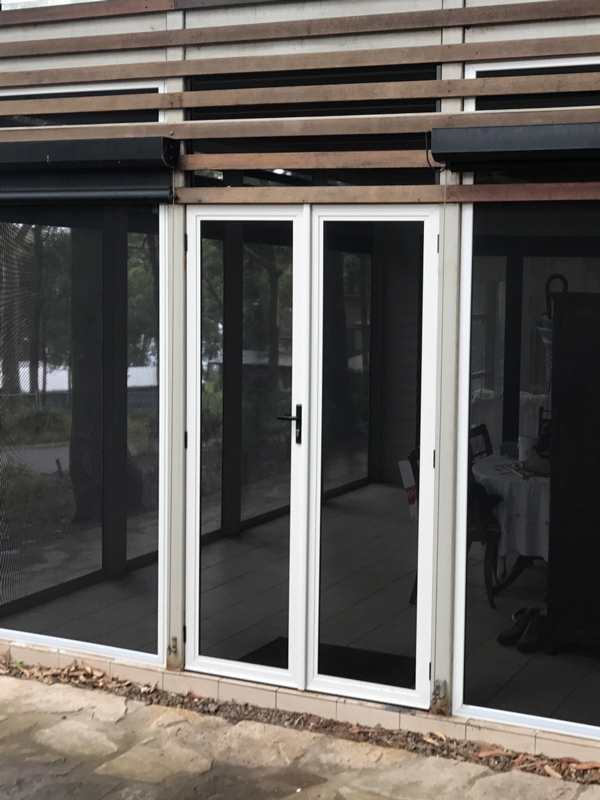

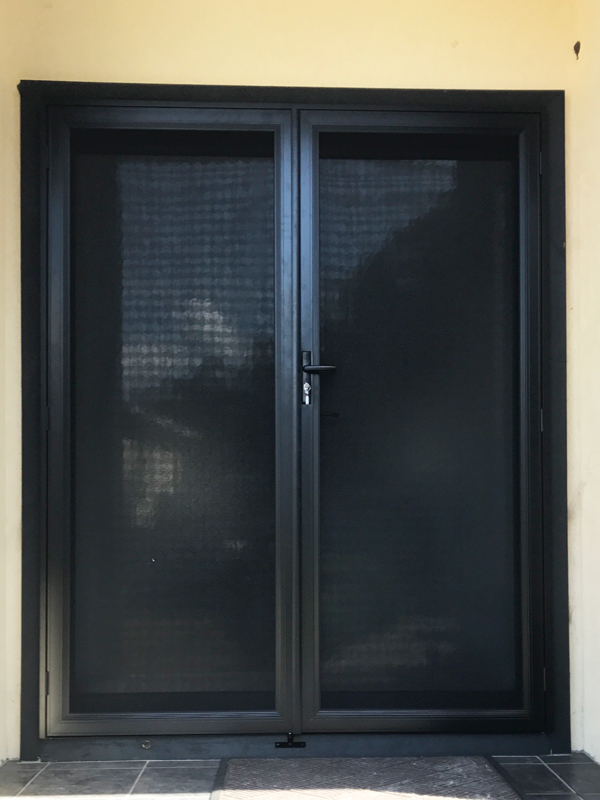

Build Your ProductSecurity Hinged French Screen Doors
316 Marine Grade Stainless Steel Mesh

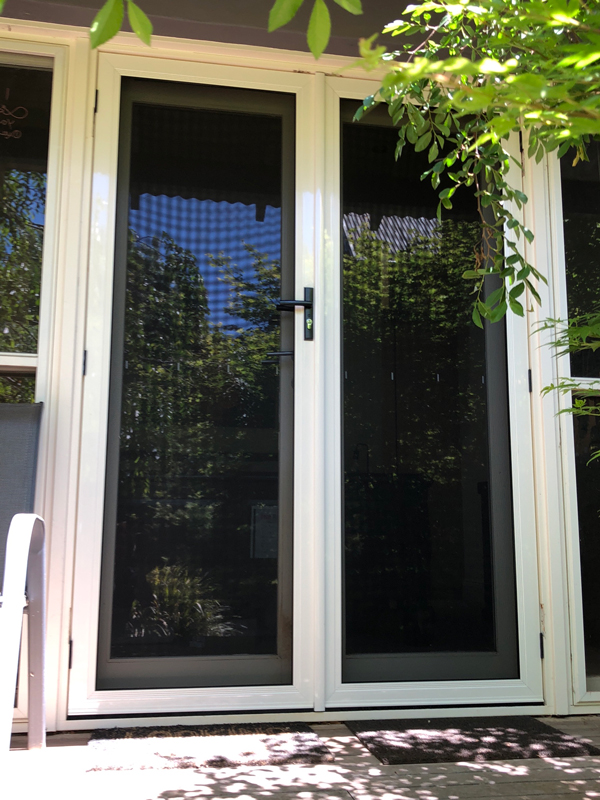

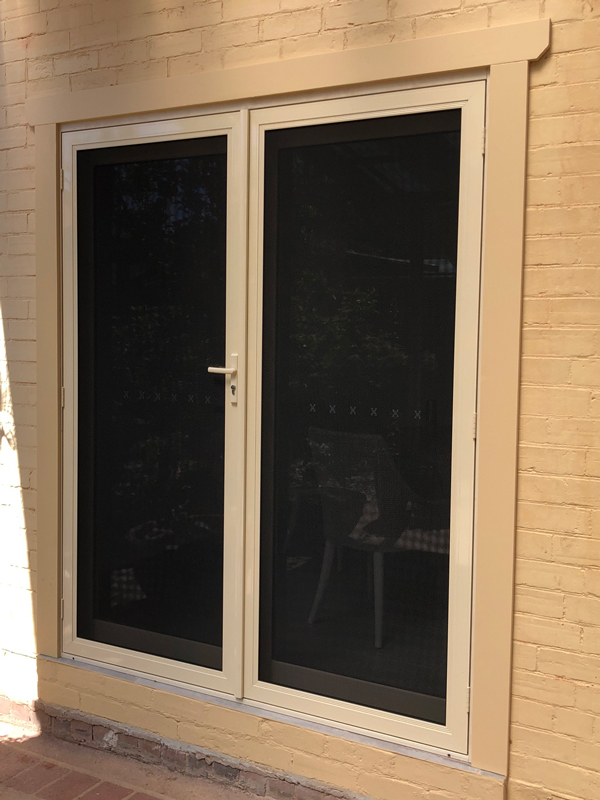

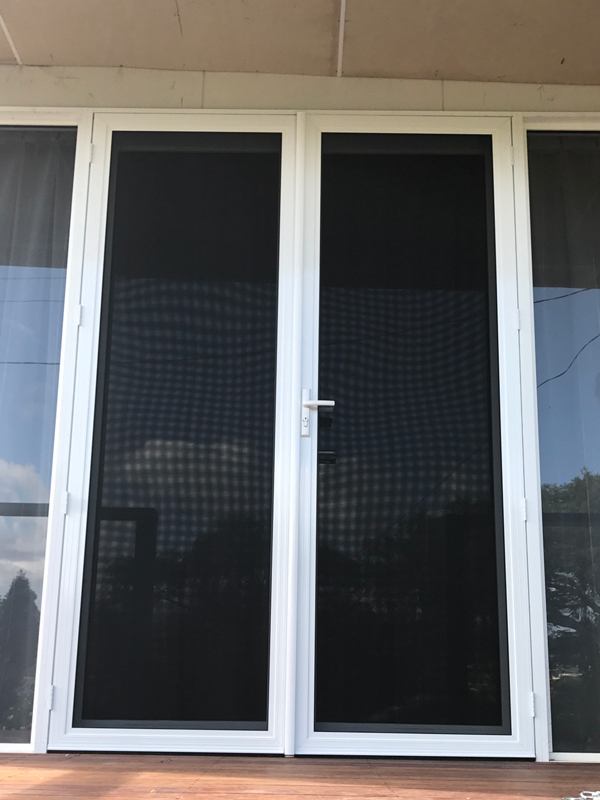

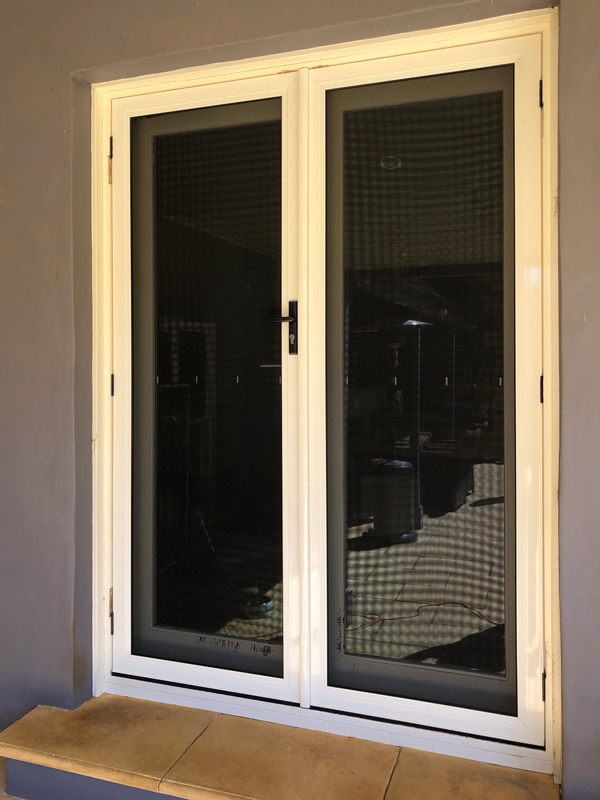

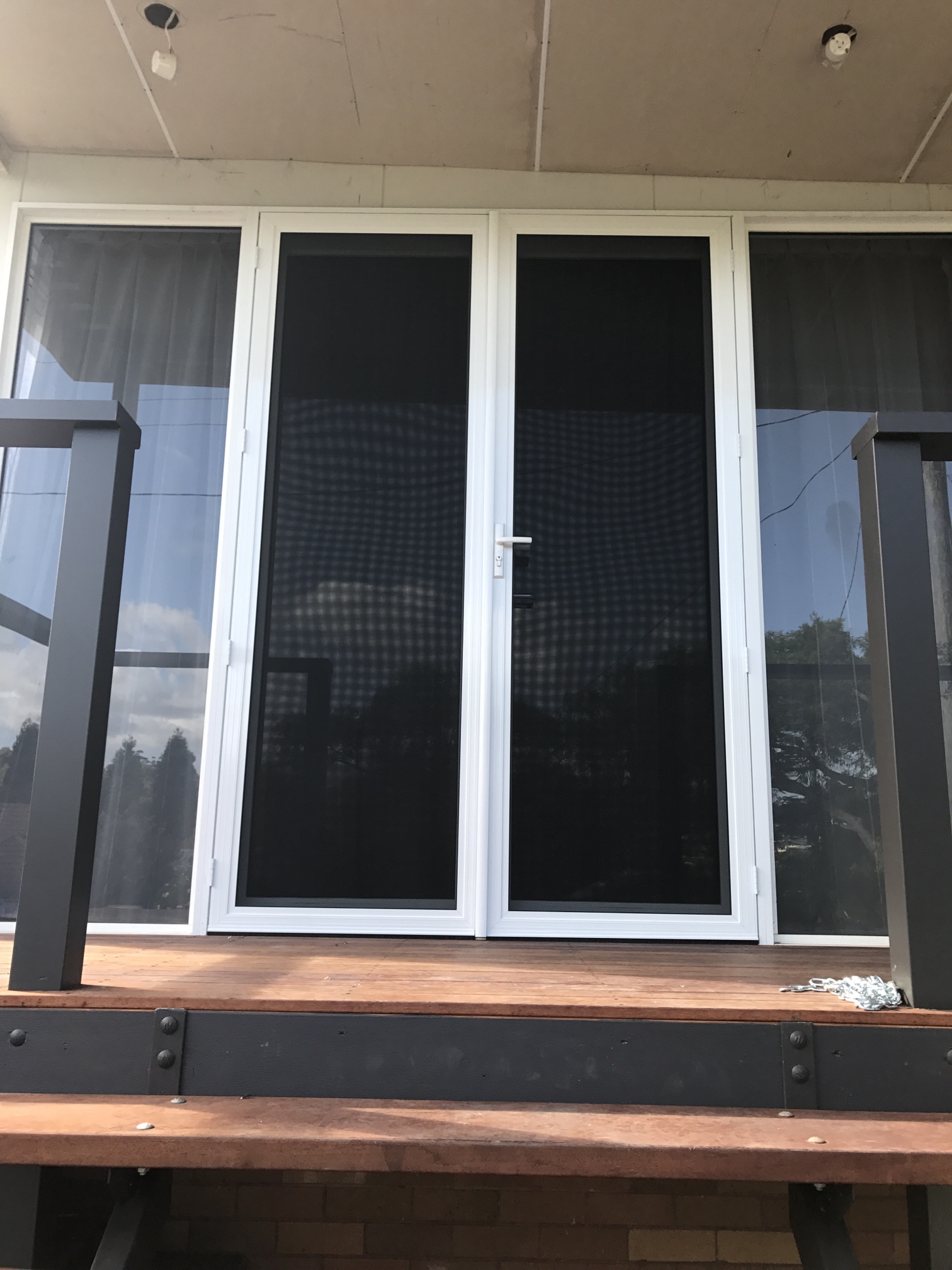

Seconline French Style double doors come made to your exact specifications ready to install with a deadlock installed in the active door, handle at your required height with corresponding hole cut into the non-active door. The non-active door will have the top and bottom flush bolts installed, these bolts are operated by one central lever located above main lock cut out in the non-active door. All that you will need to do is install.

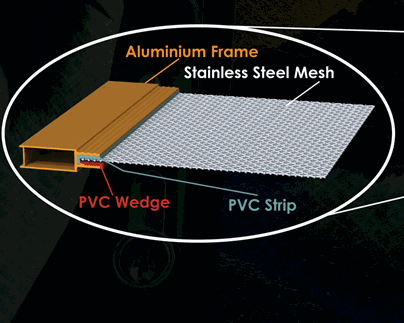

316 marine grade stainless steel woven mesh is secured into a heavy-duty aluminium frame.

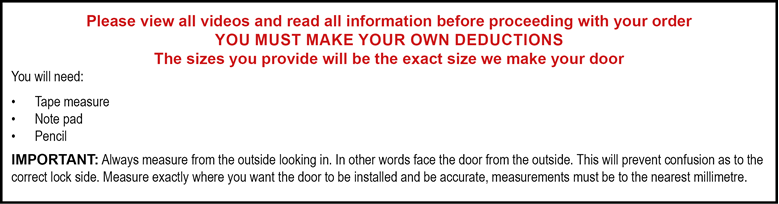

Please view all videos and read all information before proceeding with your order.
YOU MUST MAKE YOUR OWN DEDUCTIONS - See the DIY Info Centre
The sizes you provide will be the exact size we make your door; if you are unsure please ask 1300 735 405.
PRODUCT DETAILS
- Doors made to your measurements
- Impact tests exceed Australian standard
- 316 Marine grade Stainless steel mesh
- Three heavy-duty steel hinges
- Single deadlock
- Double door cover fitted to non-active door with all cut outs complete
- Internal top and bottom flush bolts fitted to non-active door
- Internal snib locking for key-less fast exit
- Two keys
- A choice of 17 door frame colours
- Four lock and hinge colours
- 12 month manufacturing warranty
- Fast turn around
- Total maximum widths including both doors 1700 mm x 2100 mm.
Note:
- We make doors square and to cut sizes.
- Door deductions are made by customer.
- Guidelines, measurement and installation advice are available in FAQ.

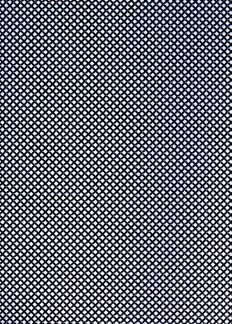

MESH - Woven Steel Powder Coated Black
- 316 marine grade stainless steel mesh
- Extensively tested for dynamic impact, knife shear and salt spray.
316 Marine Grade Stainless Steel Mesh
- 1.1 x 1.1 x 0.80 mm
- 316 Marine Grade Stainless Steel
- Ultimate Tensile Strength 1060 Mpa
- Higher Ni Content
FRAME
- Available in 17 colours
- Frame size: 20 mm x 70 mm SECURITY FRAME
- Single security deadlock fitted
- Three heavy duty hinges fitted
- Locks and hinges available in Black, Paperbark, White and Primrose
DOOR FRAME AVAILABLE IN A SELECTION OF 17 STANDARD COLOURS
LOCKING SYSTEMS
Seconline security doors come with an Austral Elegance single lock that deadlocks or choice to upgrade to a triple locking system, with internal snib locking for fast key-less exit, two keys and 12 month warranty. Three heavy duty steel hinges are fitted to the frame. Both locks and hinges are available in four colours.
A triple locking system upgrade is available for added security.
MESH MAINTENANCE
Central with the Seconline Security System is woven high tensile 316 stainless steel mesh and architectural aluminium framing. The woven design of the mesh in particular can attract impurities, salt and other contaminates particularly in corrosive or heavy industrial areas.
The Seconline Security System will require regular maintenance to enhance its pristine appearance and prolong product life. Dependent upon the proximity from coastal beachfront, tidal waters or heavy industrial areas will determine the cleaning frequency.
PowaWash is a biodegradable, environmentally friendly, tried and proven washing formula. Mix three caps of PowaWash with every litre of water. Recommended use of a soft bristled brush or nonabrasive cloth, apply PowaWash, followed by a clean water rinse.
Failure to comply with this cleaning schedule will void the 5 Year Warranty on the 316 stainless steel mesh in the product.
Please note: the maximum overall width and height we can fabricate for this price is 1700mm width x 2100mm height. For larger doors email us for a quote.
NOTES:
- Active Door: Refers to the door with the lock. This will mirror your existing doors.
- Non Active: Refers to the door receiving the lock.
- We fit flush bolts to the top and bottom of the non-active door to make it stationary.
- We attach a door cover to the active door which stops it swinging past the non-active door, acting as a receiving jamb for the non-active door. This will come already cut out ready to fit.
- All locks will be cut ready for immediate use.
Method
1. Measuring from an existing set of French screen doors:
If you have an existing set of French Hinged Screen Doors, and you are happy with the fit then we suggest that you measure this door and use these measurements for your new door.
Door Height: Measure from top to bottom of the screen door on both the left and right hand sides; send us the shortest of the two measurements.
Door Widths: Measure the top, middle and bottom widths of the screen door; send us all three measurements.
Active Door: Looking at the doors from the outside nominate which door requires the lock, the Left door or the Right door.
Lock Height: Refer to the Lock Above & Lock Below instructions at the bottom of the page. Then measure from the bottom of the existing screen door up to the centre of the existing striker, this will be the centre of the new striker and screen door handle.

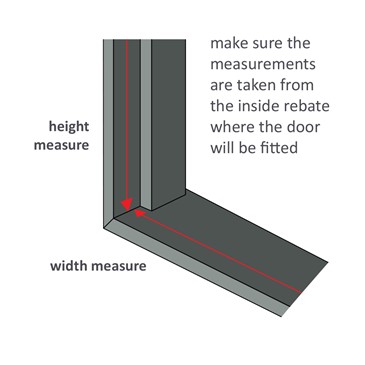

2. Measuring for a new set of French Hinged Screen Doors:
Door Height: Measure from top (1.1) to bottom (1.2) on both sides of your door frame, deduct 8 mm from the shortest side and record this measurement. Keeping the sides the same length will allow us to build your door square.
1.1 1.2
Note: A bug seal is recommended to minimise gap at the bottom after the door is installed. This can be selected from the list of Add Ons available when calculating the price of your door.
Door Widths: Measure the overall jamb, top middle and bottom, deduct 15 mm and divide by two. This will give you the exact individual make size for each door. If you end up with a 0.5 mm, round down. The three width measurements can be different; however the variation should not differ by greater that 7-8 mm.
Active Door Side: When indicating the active and non-active door ensure you are looking from the outside in.
Lock Height: Measuring the lock stand outside looking in, the lock height is measured from the bottom of the door to the middle of the handle and tongue.
Lock Above: Measure from the bottom sill to the top of the existing solid door handle and add 125 mm (1.4). This will be the new door handle and tongue height.
Lock Below: Measure from the bottom sill to the bottom of the existing solid door handle and deduct 60 mm (1.5). This will be the new door handle and tongue height.
1.4 1.5
Please view all our guides provided before proceeding with your installation
You will need:
- Cordless Drill
- Phillips Driver Bit
- 3 mm Drill Bit (1/8 imperial)
- Pencil
- Safety Glasses
- Ear Plugs
- Masonry Drill (if required for bottom flush bolt)
Note: If you require a bottom bug seal, it should be installed last.
IMPORTANT: When assembling and installing your lock the snib (the silver lever used to lock and unlock the door without the key) must be in the 12 o'clock position - if this is not installed correctly to your locking mechanisms will not perform correctly.
1. Swing the Non-Active Door
Begin by carefully unpacking your doors and installing your lock handle; see note above referring to the correct snib position when assembling your lock.
Starting with your non-active door hold the door in the open position with hinge open and resting against the jamb.
Hold the door approximately 4-6 mm down from the top of jamb and mark the centre of the elongated hole in the top hinge (1.1).
1.1
Using a 3 mm drill bit, slightly pre drill a pilot hole on the mark you have just made (1.2).
1.2
Hold the door in place. Using a cordless gun, screw through hinge centre elongated hole into pilot hole and screw up tight (1.3).
1.3
2. Swing the Active Door
Repeat all steps for the Active door and close against the Non-Active door, check your locks by engaging the internal snib. If you find that the locks do not align your doors do not meet to your satisfaction use the included hinge packers to pack out the hinge on one door only. Ensure that the locks are engaging and locking correctly before you proceed to the next step. Once you have identified that the lock is locking correctly and aligned, then install all remaining hinge screws.
3. Flush Bolt Holds
On the non-active door face you will find a silver lever that activates the flush bolts. Pulling down on this lever will engage
Tip: Use something colourful yet removable such as white out boot polish to cover the tip of the flush bolt to mark precisely where to drill the hole.
Close the non-active door to its final close position and activate silver lever, carefully marking both sides of bolts top and bottom. Open the door back and carefully drill a 9 mm hole in both marked positions then close the non-active door and check that flush bolts are engaging fully. Once you are comfortable that there is no restriction and the bolts both top and bottom are engaging easily, then close the active door and check all clearances.
4. Installing bug seal
The installation of a bug seal is done after the door is installed to ensure a perfect fit. Remove the adhesive tape and apply it to the bottom of your door. For added strength fix with pop rivets or screws.
Allow the seal to rest on the bottom of the door resting on the sill. Do not push down. Using a 3 mm drill bit (1/8 imperial) drill a hole through the top section of the bug seal and directly into the bottom of the door. Pop rivet and repeat at the opposite end.
Q. What is a Triple Lock Upgrade?
A. A Triple Lock Upgrade is a locking system that is activated from the locking handle position and has 2 additional strikers. Diagram below
Q. Do Seconline make deductions for French Hinged doors?
A. No. The measurements you provide will be the exact size fabricated.
Q. What deductions do I make?
A. We can only advise as to the standard allowances. Some doors may have individual quirks. Please provide measurements in millimetres. The measurements you provide will be the exact measurements your door will be fabricated. Please check your tape for accuracy.
- Measure the overall width of the jamb, deduct 15 mm and divide by two - this will give you the width for each door; repeat top, middle and bottom.
- Standard drop deduction: 8 millimetres off the shortest length. Both doors should be the same height. We keep both lengths the same to ensure door can be made square; a small gap may appear at the bottom of the door. This can be eliminated by installing a bug seal which can be purchased from our accessories section.
- Take your lock measurement from the bottom [ground] to the centre of where you want your lock handle. This will also be the centre of middle lock striker. This measurement needs to be a minimum of 120 millimetres above your existing door lock or 60 millimetres below.
Q. Why do I measure from outside looking in?
A. To determine which side for both lock and hinges.
Q. What is the Active Door?
A. This is the door with the lock, nominate your active door e.g. Left, the lock will be installed on the right hand side of this door.
Q. Can you offer any suggestions to help gain accuracy with measurements?
A. Yes. Measure multiple times and perhaps have someone else measure as well. Remember we will supply the door to the exact measurements you provide.
Q. What if my door is out of square?
A. We can only supply the door with square diagonals. You are able to provide three different width measurements, however if there is a difference in the middle measurements, then this will be made to the lock side only. The hinge side will remain straight. This is so we don’t get hinge bind on the middle hinge.
Q. Does the door come with a door closer and bug seal?
A. No, they can be purchased as an add on or from our Extras page
Q. Do you install?
A. No we supply only. Installation is not difficult; however we recommend you use a licensed installer.
Q. Does the door come with a door jamb?
A. No.
Q. Does the door come with screws to fit?
A. Yes for timber fit only - Hinged doors only.
Q. Why do you need a centre of the door handle height?
A. To manufacture your door with the handle compatible with your existing handle for both sliding and hinged doors.
Q. Is the centre of the handle the centre of the main tongue?
A. Yes.
Q. How far above or below our existing solid door handle do we put our required handle height?
A. Below: Measure from the ground to the bottom of the existing solid door handle and deduct 65 mm. This allows the minimum distance required.
Above: Measure from the ground to the top of the existing solid door handle and add 125 mm. This allows the minimum distance required.
Q. Does the internal snib lock the three point lock?
A. Yes.
Q. Do I need to recess the hinges?
A. No. However if there is a bow in the hinge side jamb, then recessing or packing the middle hinge may be necessary.
Q. If I have a current door that I am replacing and it has the hinges that have been recessed. What do I do?
A. You can either have the hinges placed to avoid the recesses and repair the existing recesses, or have them placed exactly where they exist now.
Note: If you have them placed where they exist now it will affect the width deductions. We would only recommend this if you were measuring an existing door that you are happy with the fit.
Q. How do I measure where to place the hinges if required?
A. Top: Measure from the top of the existing door to the centre of the top hinge.
Bottom: Measure from the bottom of the existing door to the centre of the bottom hinge.
Middle: Measure from the bottom of the existing door to the centre of the middle hinge.
Place these measurements in the Delivery Notes field in the shopping cart.
