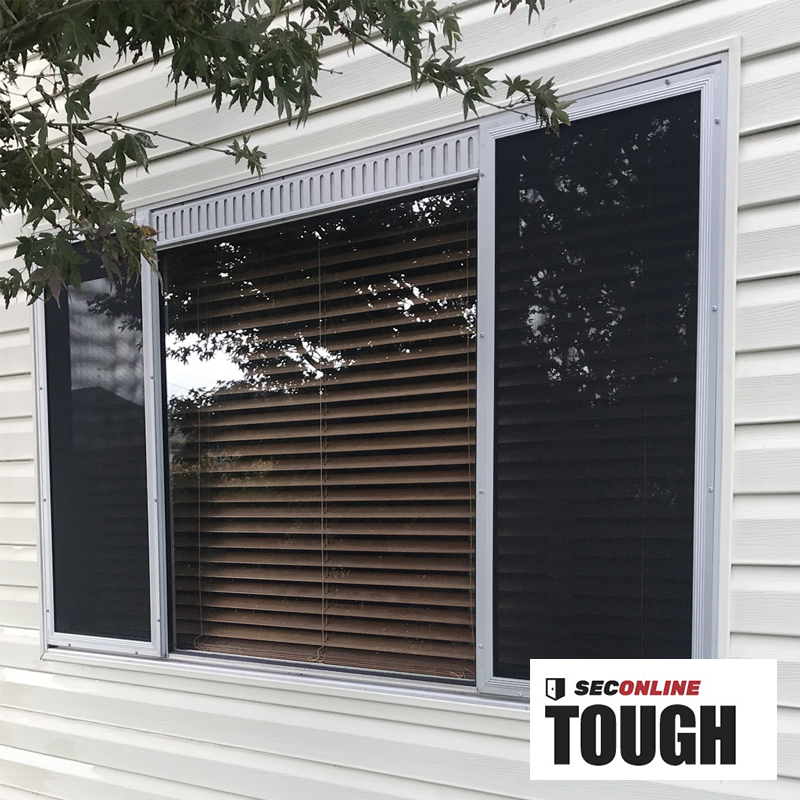

Seconline TOUGH Security Window Screen



Custom made Security window screens made to your exact specifications.

With 316 marine grade stainless steel mesh secured into a heavy-duty aluminium frame this technology has exceeded the Australian standard for impact testing along with knife sheer, and longevity tests.

Seconline TOUGH Security Window Screen are available in a choice of 17 frame colours with black powder coated 316 Marine Grade Stainless Steel mesh.

 Please view all videos and read all information before proceeding with your order.

YOU MUST MAKE YOUR OWN DEDUCTIONS - See the DIY Info Centre

  The sizes you provide will be the exact size we make your window screen; if you are unsure please ask 1300 735 405.

Seconline TOUGH Security Window Screen - 316 Marine Grade Stainless Steel Mesh

  • Custom made
  • 316 Marine Grade Stainless Steel mesh
  • Heavy duty extruded frames
  • Mesh powder coated black to replicate fly screen look
  • 17 standard frame colour choices
  • Custom frame colour option available
  • FRAME SIZE: 11 mm x 37 mm only; we strongly recommend face fitting these screens, they will not bend like a fly screen.

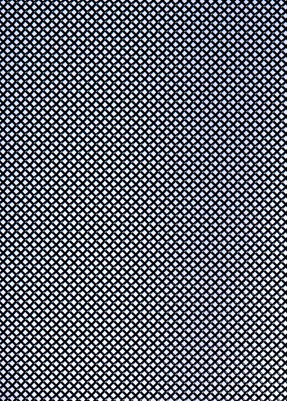

MESH - Woven steel powder coated black

Our 316 marine grade stainless steel mesh is extensively tested for dynamic impact, knife shear, salt spray, hinge and lever tests by an independent NATA accredited facility and also meets the requirements for construction in bush fire prone areas.



Stainless Steel Mesh

  • 1.1 x 1.1 x 0.80 mm
  • 316 Marine Grade Stainless Steel
  • Ultimate Tensile Strength 1060 Mpa
  • Higher Ni Content
  • Extensively tested for dynamic impact, knife shear and salt spray.
  • 5 year warranty on stainless steel mesh*

*Installed by licensed installer and proper maintenance schedule adhered to.

Note: Fitting screws not included; 16 mm rivets available; select as an add on when placing your order.



FRAME SIZE: 11 mm x 37 mm; we strongly receommend face fitting these screens, they will not bend like a fly screen.



FRAME COLOURS

 MESH MAINTENANCE

Central with the Seconline TOUGH Security System is woven high tensile 316 stainless steel mesh and architectural aluminium framing. The woven design of the mesh in particular can attract impurities, salt and other contaminates particularly in corrosive or heavy industrial areas.

The Seconline TOUGH Security System will require regular maintenance to enhance its pristine appearance and prolong product life. Dependent upon the proximity from coastal beachfront, tidal waters or heavy industrial areas will determine the cleaning frequency.

SupaWash is a biodegradable, environmentally friendly, tried and proven washing formula. Mix three caps of SupaWash with every litre of water. Recommended use of a soft bristled brush or nonabrasive cloth, apply PowaWash, followed by a clean water rinse.

Failure to comply with this cleaning schedule will void the 5 Year Warranty on the 316 stainless steel mesh in the product.

Making doors is our passion and our customers love us.

If you have any questions feel free to chat to us.

 ***IMPORTANT - MEASURE YOUR RECESS BEFORE YOU ORDER!***

11 mm frames only fit recesses wider than 11 mm, Seconline will not replace screens ordered with the incorrect frame as they must be completely remade with all new stock.





Recess fix: Our standard window grille frame is 11 mm thick at the outer wall. This is so they may be fitted into the same recess on a window as a screen. They can then be fixed in place by riveting or screwing to the window recess either internally or externally. As there are a large variety of window extrusions a decision has to be made by the person installing the screen.

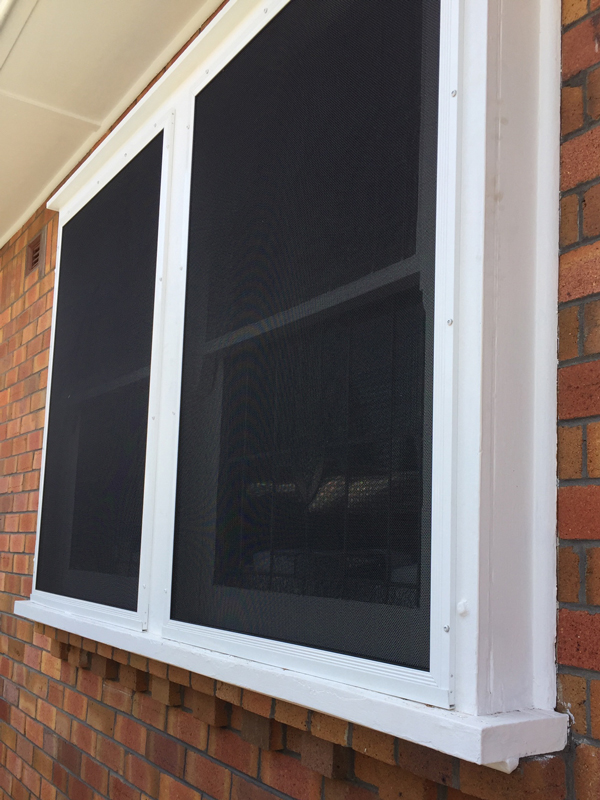

Face fix: When there is no recessed area provided for a screen the grille is simply fitted to the face of the window frame either internally or externally by drilling through the frame of the window surround, and screwing or riveting in place. Great care must be given to not interfere with the operation of the window's action, E.g. Window spirals etc.



Method

1. How to measure an existing screen:

If you have existing screens and they are a good fit, then the easiest way to measure for new ones is to remeasure your old ones, ensure that you measure the recess width and advise us if it varies from the industry standard width of 11 mm.

Note: Do not take measurements from the centre in case the screen is bowed.

Screen Width: Measure from the outer edge of the frame top and bottom, record the smallest measurement. Note: There should be maximum of 3 mm variation in the two lengths, if the variation is greater contact us to discuss solutions 1300 735 405.

Screen Height: Measure the height left and right, record the smallest measurement.

Recess Width: Using a solid ruler measure the width of your recess, advise us when placing your order if your recess width is other than 11 mm.



2. How to measure for a new screen (face fixed):

Note: The safest method of measuring is to fit the screen to the face of the window and this is sometimes the only option. You would then drill through the frame of the window surround, and screw or rivet in place.

Screen Width: Measure the recess top and bottom, record the smallest measurement.

Screen Height: Measure the height left and right, record the smallest measurement.



3. How to measure for a new screen (recess fixed) 1.1

Screen Width: Measure inside recess of windows where screen will be located, top and bottom then deduct 2-3 mm to allow fitting clearance and record the smallest measurement.

Screen Height: Measure inside recess of windows where screen will be located, left and right then deduct 2-3 mm to allow fitting clearance and record the smallest measurement.

Recess Width: Using a solid ruler measure the width of your recess, advise us when placing your order if your recess width is other than 11 mm.

Recess Depth: Using a solid ruler measure the depth of your recess, advise us when placing your order if your recess depth is other than 11 mm.

1.1



Pop Rivet Face Fix:

Use a 3mm drill bit to pre-drill the holes then use 3mm x 15mm rivets to face fix the screens to the outside of the window frame.

Rivets should be placed 50mm away from each corner and space at least 30mm apart.
Pop Rivet Recess Fix:
Fit the screen into the recess, use a 3mm drill bit to pre-drill the holes, then use 3mm x 15mm through the recess and the window screen to fix into place.

Pop Rivet Face Fix:

Use a 3mm drill bit to pre-drill the holes then use 3mm x 15mm rivets to face fix the screens to the outside of the window frame.

Rivets should be placed 50mm away from each corner and space at least 30mm apart.
Pop Rivet Recess Fix:
Fit the screen into the recess, use a 3mm drill bit to pre-drill the holes, then use 3mm x 15mm through the recess and the window screen to fix into place.

Q. Where do I measure for my window grilles?

A. Before you measure you need to establish where exactly how you are going to fix the grille to the window. There are two basic types of external fixing.

Recess fix: Our standard window grille frame is 11 mm thick at the outer wall. This is so they may be fitted into the same recess on a window as a fly screen. They can then be fixed in place by riveting or screwing to the window recess either internally or externally. As there are a large variety of window extrusions a decision has to be made by the person installing the screen.

Face fix: When there is no recessed area provided for a fly screen the grille is simply fitted to the face of the window frame either internally or externally by drilling through the frame of the window surround, and screwing or riveting in place. Great care must be given to not interfere with the operation of the window's action, E.g. Window spirals etc.

Measuring for a recess fix is difficult due to the many variations in styles. The simplest method is to remeasure the existing fly screen if it is a good fit, and a fix can be obtained. If this option is not available then you must be mindful of being able to fit the screen into the recess whilst still covering the window. Remember: Fly screens are flexible, security window screens are not.

Q. What colours do you have as standard?

A. Seconline's security screens are available in 18 standard colours. Refer to Product Details for our full colour chart.

Q. Can I have another colour if I am happy to pay extra?

A. Yes. Please email with sizes and quantities and we will provide a quote including powder coating.

The video below features the the window grille frame.





Pre-Christmas delivery has closed; we are still fully operational and will continue to manufacture up until Christmas Eve, re-opening Monday January 4th, 2021. Manufacturing times are now sitting at 4 weeks from the date of order plus the 2 weeks closure period.

Once your order is custom made to your specifications it is then packaged for shipment direct to your requested shipping address via Regional Road Express. Once dispatched you will be sent a connote number; see our Terms and Conditions page for estimated transit times.

If you encounter any issues or have any questions during the ordering process please phone us on 1300 735 405, we are always happy to help.

* Pending availability of stock (Seconline will advise of any stock shortages that may extend the manufacturing time).
